Products : Thermocouples, resistance thermometers and other measuring technology
Need to measure temperatures at high voltages, in extreme heat or cold, or in sensitive environments? At RÖSSEL-Messtechnik, we offer a wide range of thermocouples, resistance thermometers and accessories. We develop and manufacture thermometers for individual industry requirements: Special sensor calibrations and material combinations of quartz, ceramic, tungsten rhenium, silicon or sapphire crystal permit highly-specialist applications of our temperature sensors.
Top manufacturing quality, custom design and expert advice on everything related to temperature measurement make us a reliable partner for the worlds of research and industry.

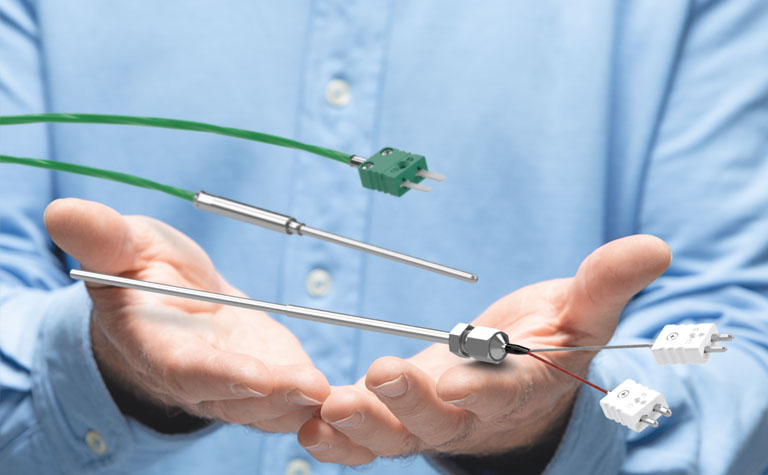

Miniature robust sensors with short response times and resistant sensors for measuring temperatures in extreme conditions up to 2,000°C. RÖSSEL-Messtechnik supplies thermocouples in various designs, from sheathed thermocouples and high-temperature thermocouples to custom designs.

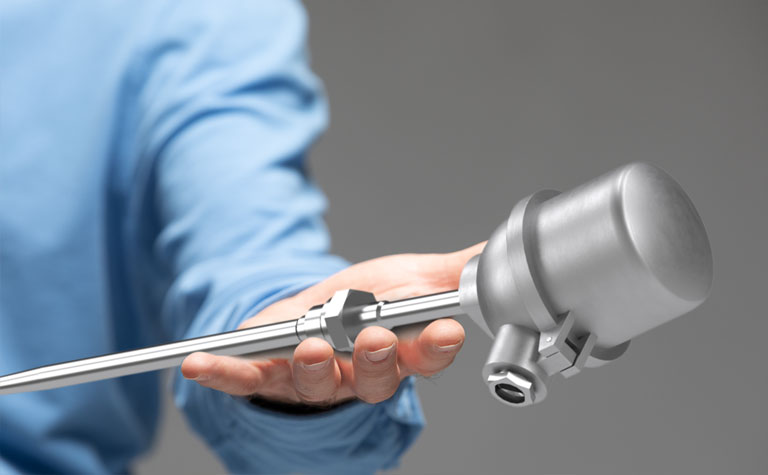

Resistance thermometers are high-precision, durable sensors designed to measure temperatures between -196°C and +850°C. We offer a number of resistance thermometer models with various thermowells and measuring inserts.

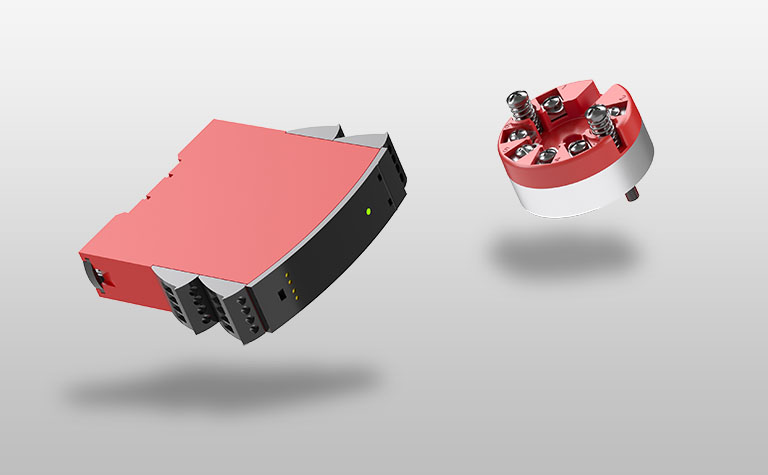

Convert thermometer signals into analog, digital or bus signals using our transducers. RÖSSEL-Messtechnik supplies transducers with various design and installation options.

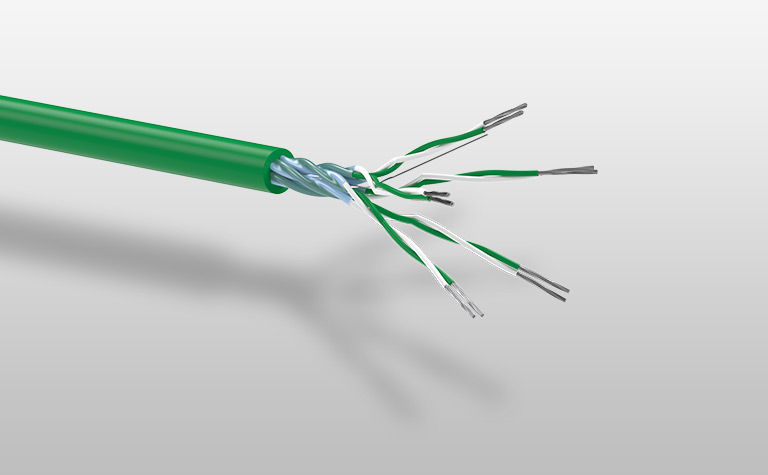

We provide thermocouple cables, compensation cables and copper conductors, and develop process-optimized cables for high-voltage applications or ignition cables for gas turbines, for example.

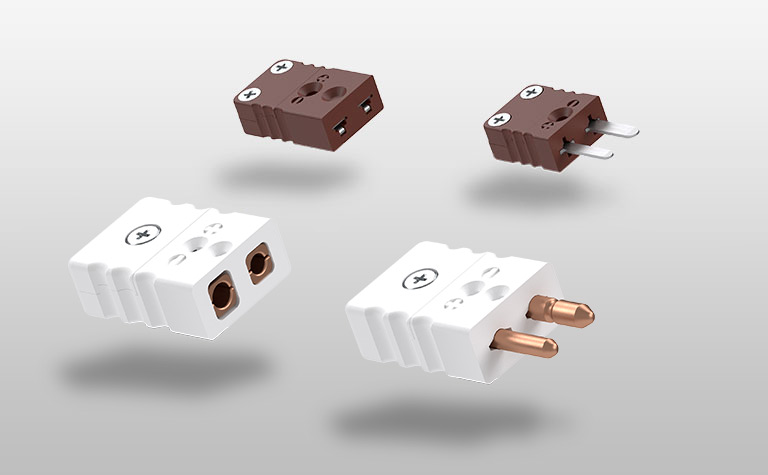

We’ve partnered up with leading connector manufacturers to develop connectors with various designs and properties for technical applications for signal coupling with thermocouples and resistance thermometers.

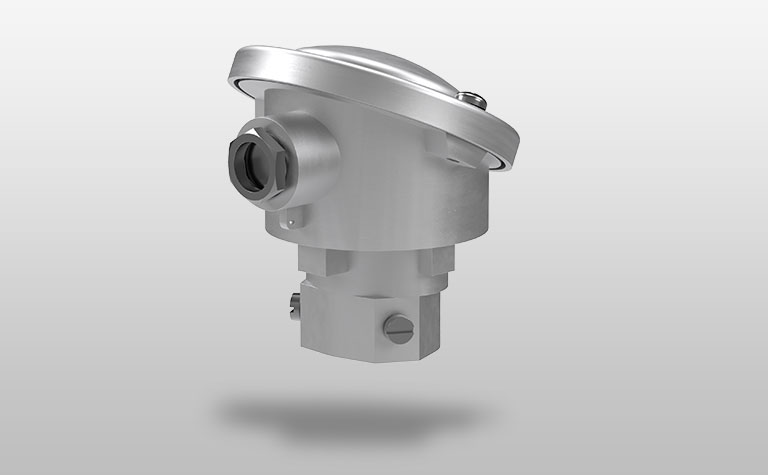

Learn about all the key accessories for temperature measuring technology like compensation cables, connection heads, compression fittings, brackets and thermowells.
What are contact thermometers?
The term contact thermometer refers to all thermometers that come into direct contact with the medium, the temperature of which needs to be measured. Contact thermometers include expansion thermometers (liquid and bimetal thermometers) and all electrical and electronic thermometers used with temperature sensors.
Industrial contact thermometers consists of the thermosensitive elements (e.g., thermocouple or Pt100) installed in a thermowell or immersion tube for protection. In many cases, the tube features a plug-in socket to connect electrical cables.
This entire structure is standardized and referred to as a measuring insert. Measuring inserts may be equipped with a thermowell and connection head. Together, the thermowell and connection head form the thermowell assembly. The thermowell assembly protects the sensitive measuring insert against mechanical and chemical stress, and the terminals against contamination and moisture.
What are active and passive sensors?
The question of whether a sensor is active or passive depends on whether the sensor independently generates a signal and is therefore active, or a signal is generated using auxiliary energy, making the sensor passive.
Thermocouples are one example of active sensors as they generate thermoelectric voltage due to ambient conditions that can be displayed with a purely analog display measuring device.
Passive sensors traditionally include all resistance-based, capacitive or inductive sensors, and therefore also resistance thermometers. They require a measuring current that is fed via the measuring device. This auxiliary energy is then modulated due to environmental influences and can be evaluated as a signal. With passive sensors, self-heating needs to be taken into account as it can influence the measurement results. As a result, the measuring current for resistance thermometers is typically limited to ≤ 1 mA.
RÖSSEL-Messtechnik – your certified partner
As a leading manufacturer of temperature measuring technology for industrial and research purposes, we meet the strictest production standards. With internationally recognized approvals and calibrations, we offer quality you can rely on around the globe.
